Specification parameter

Model				Frontier Pro ICE Vehicle model parameter configuration
Model			Frontier Pro 2.0T Gasoline Automatic 4WD Comfort	Frontier Pro 2.0T Gasoline Automatic 4WD Luxury	Frontier Pro 2.0T Gasoline Automatic 4WD Premium	Frontier Pro 2.3T AT Diesel 4WD Comfort	Frontier Pro 2.3T AT Diesel 4WD Luxury	Frontier Pro 2.3T AT Diesel 4WD Premium
Emissions Standard			Euro I~Euro VI	Euro I~Euro VI	Euro I~Euro VI	Euro I~Euro VI	Euro I~Euro VI	Euro I~Euro VI
Fuel Type			Gasoline	Gasoline	Gasoline	Diesel	Diesel	Diesel
Drivetrain			4WD	4WD	4WD	4WD	4WD	4WD
Transmission			8AT	8AT	8AT	8AT	8AT	8AT
Vehicle Specifications	Vehicle Dimensions (mm)		552719601950	552719601950	552719601950	552719601950	552719601950	552719601950
	Wheelbase (mm)		3300	3300	3300	3300	3300	3300
	Front/Rear Track (mm)		1650	1650	1650	1650	1650	1650
	Suspension（Front/Rear）		955/1265	955/1265	955/1265	955/1265	955/1265	955/1265
	cargo compartment L × W× H (mm)		15201600550	15201600550	15201600550	15201600550	15201600550	15201600550
	Minimum Turning Radius (m)		6.75	6.75	6.75	6.75	6.75	6.75
	Minimum Ground Clearance (mm)fully loaded		226	226	226	226	226	226
	Maximum permissible total mass（kg）		2975	2975	2975	3075	3075	3075
	Curb Weight (kg)		2160	2160	2160	2260	2260	2260
	Payload Capacity (kg)		490	490	490	490	490	490
	Maximum allowable towing mass (kg)		2900	2900	2900	3000	3000	3000
	Approach Angle / Departure Angle (°)unloaded		31°/26°	31°/26°	31°/26°	31°/26°	31°/26°	31°/26°
	Number of passengers (person)		5	5	5	5	5	5
	Fuel tank capacity (L)		73	73	73	73	73	73
	maximum speed (km/h)		160	160	160	170	170	170

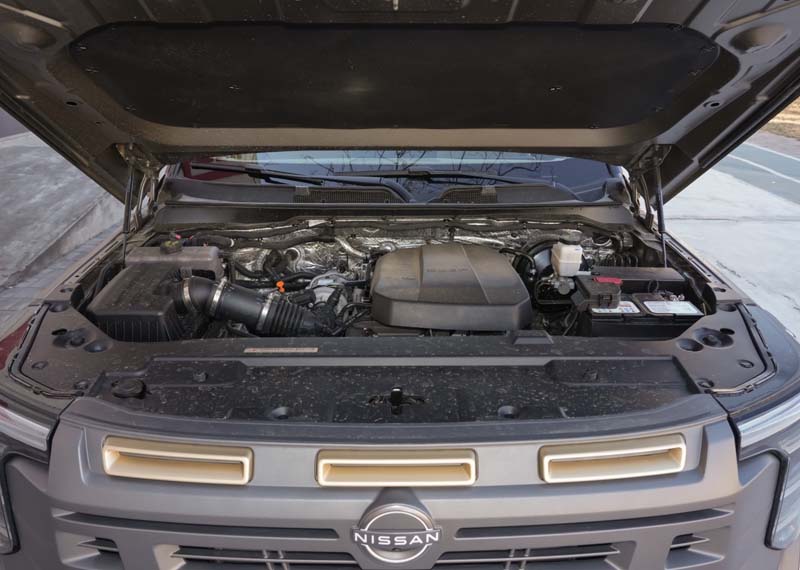

Engine	Fuel Type		Gasoline	Gasoline	Gasoline	Diesel	Diesel	Diesel
	Displacement (L)		2.0T	2.0T	2.0T	2.0T	2.0T	2.3T
	maximum Power (kW)		190	190	190	140	140	140
	Maximum Torque (N·m)		400	400	400	500	500	500
transmission	All-terrain mode - excluding rocks		●	●	-	●	●	-
transmission	All-terrain modes - Standard, Economy, Sport, Snow, Desert, Rock, Mud, Expert mode		-	o	●	-	o	●
running gear	braking system		Four-wheel disc brakes	Four-wheel disc brakes	Four-wheel disc brakes	Four-wheel disc brakes	Four-wheel disc brakes	Four-wheel disc brakes
	handbrake	electronic parking brake	●	●	●	●	●	●
	handbrake	AUTO HOLD	●	●	●	●	●	●
	Drive Type		Part-time four-wheel drive	Intelligent 4WD	Intelligent 4WD	Part-time four-wheel drive	Intelligent 4WD	Intelligent 4WD
	Suspension system	Suspension front	Double wishbone + stabilizer bar	Double wishbone + stabilizer bar	Double wishbone + stabilizer bar	Double wishbone + stabilizer bar	Double wishbone + stabilizer bar	Double wishbone + stabilizer bar
		Suspension rear(five-link)	●	●	●	●	●	●
		Suspension rear(leaf spring)	-	o	o	-	o	o
	tire	265/65 R18	●	●	●	●	●	●
	tire	265/70 R17 AT	-	o	o	-	o	o
	aluminum wheel hub	aluminum wheel hub	●	●	●	●	●	●
Exterior	shark fin antenna		●	●	●	●	●	●
	outer door handle	Body color matching	●	●	●	●	●	●
	inner door handle	Black leather pattern + electroplating	●	●	●	●	●	●
	headlight	LED	●	●	●	●	●	●
		Headlights auto on + Headlights delay off + Low beam override mode	●	●	●	●	●	●
		Electrically adjustable height	●	●	●	●	●	●
		sequential turn signal	●	●	●	●	●	●
		Welcome lighting	●	●	●	●	●	●
	roof rack	Longitudinal rail type + aluminum alloy	-	o	o	-	o	o
	side pedal	fixed	●	●	●	●	●	●
	Electric pedal for rear cargo box		-	o	o	-	o	o
	Electric flat box cover		-	o	o	-	o	o

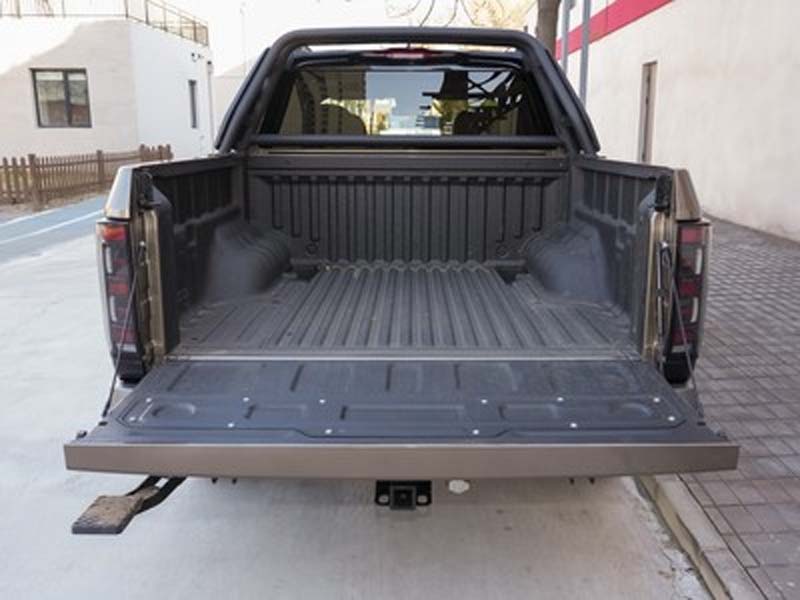

	Trunk treasure (original wear-resistant coating)		●	●	●	●	●	●
	car body paint	Two-component paint: high gloss retention, wear-resistant, anti-aging paint	●	●	●	●	●	●

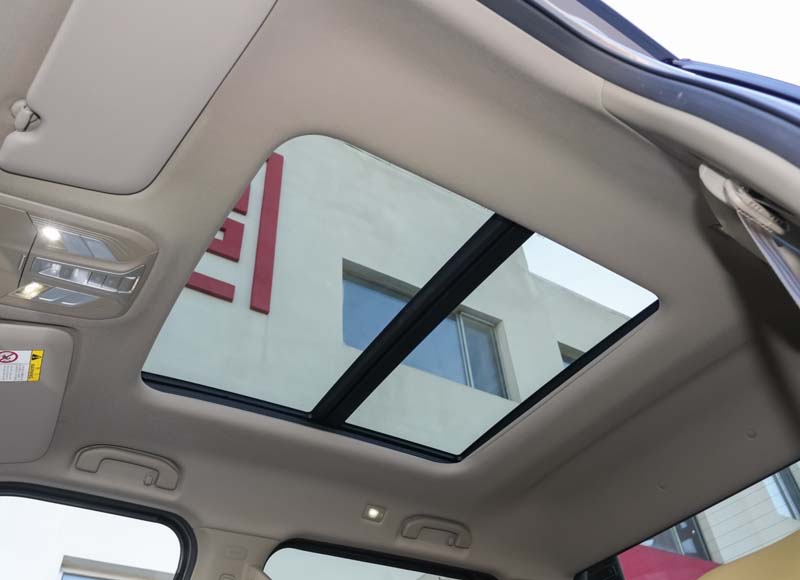

comfort configuration	panoramic sunroof	Electric + electric sunshade	-	o	●	-	o	●
	Multi-function steering wheel	leather-wrapped steering wheel	●	●	●	●	●	●
		four-way adjustment	●	●	●	●	●	●
		Switch to multi-mode (Comfort, Standard, Sport)	●	●	●	●	●	●
		Multi-function steering wheel (voice control, audio control, cruise control, Bluetooth phone, etc.)	●	-	-	●	-	-
		Multi-function steering wheel (voice control, audio control, adaptive cruise control, Bluetooth phone, etc.)	-	●	●	-	●	●
		steering wheel heating	-	o	●	-	o	●
	air conditioner	dual-zone	●	●	●	●	●	●
		PM2.5 filter	●	●	●	●	●	●
		heating water pump	●	●	●	●	●	●

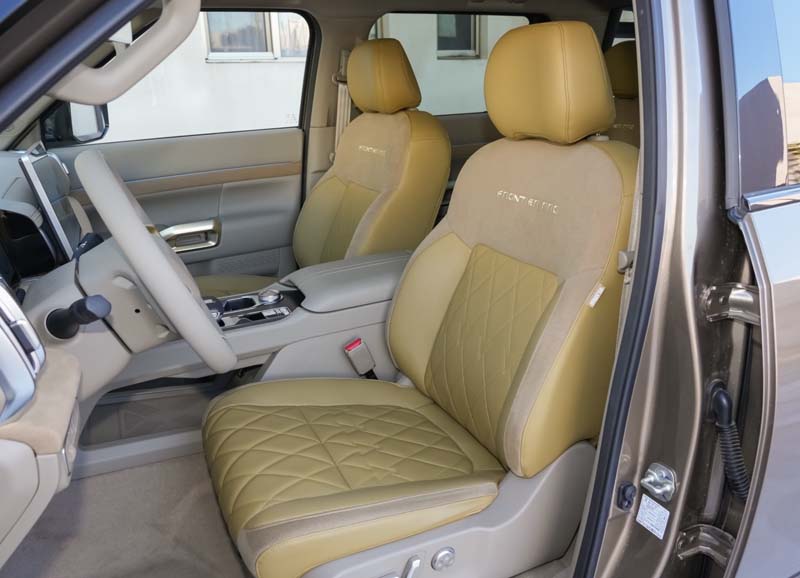

	Seat material	faux leather	●	●	-	●	●	-
	Seat material	genuine leather	-	-	●	-	-	●
	Driver's seat adjustment (with reclining function)	6-way electric adjustment	●	-	-	●	-	-
		6-way electric adjustment (3 levels for ventilation, 3 levels for heating)	-	●	-	-	●	-
		12-way electric adjustment (4-way electric lumbar support): 3 levels of ventilation, 3 levels of heating, 3 levels of memory + welcome feature	-	-	●	-	-	●
	Co-driver seat adjustment (with reclining function)	manual seat	●	-	-	●	-	-
		Electric seats: 3 levels of seat ventilation, 3 levels of seat heating	-	●	-	-	●	-
		Electric seats: 3 levels of seat ventilation, 3 levels of heating, 3 levels of memory + welcome feature	-	-	●	-	-	●
	Front headrest type	Stand-alone, adjustable up and down	●	●	●	●	●	●

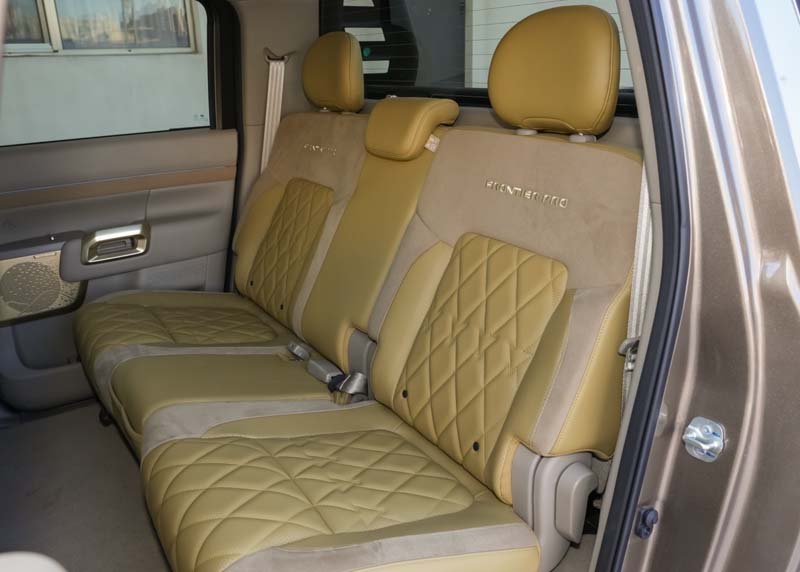

	Headrest type of the second row	Stand-alone, adjustable up and down	●	●	●	●	●	●
	Second row seat type	Adjustable backrest + 4/6 split	●	●	●	●	●	●
	The backrest of the rear seats is adjustable	Storage box under the second row	●	●	●	●	●	●
	The backrest of the rear seats is adjustable	The seat cushion can be flipped	●	●	●	●	●	●

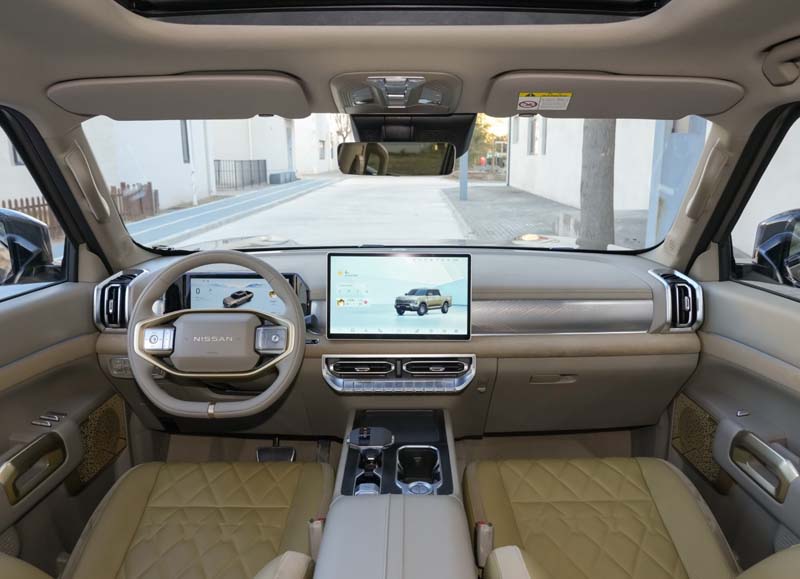

	instrument cluster	Color (10-inch), dual-screen linkage, off-road information display	●	●	●	●	●	●
	smart key	smart key	●	●	●	●	●	●
		Keyless entry (driver's side + co-driver's side)	●	●	●	●	●	●
		One-touch start + engine anti-theft	●	●	●	●	●	●
		Touchless welcome, touchless unlock	●	●	●	●	●	●
	sun visor	Driver + co-driver	●	●	●	●	●	●
	Glasses case + reading light + indoor light (touch switch)		●	●	●	●	●	●
	windshield	Green glass + UV protection + heat resistance	●	●	●	●	●	●
	rear windshield	Grey tinted glass + defrosting and heating	●	●	●	●	●	●
	front door glass	Green glass	●	●	●	●	●	●
	front door glass	Double-layer laminated glass	●	●	●	●	●	●
	front door glass	Grey tinted glass	●	●	●	●	●	●
	Trunk door	central locking	●	●	●	●	●	●
	Tailgate descent control	With pull wire + damping + assistance	●	●	●	●	●	●
	box cover (electric) assembly	Integrated cargo box + rear door sealing strip	-	o	o	-	o	o
	Rain-sensing windshield wipers	High speed, low speed, automatic intermittent adjustable	●	●	●	●	●	●
	Fog-like washing nozzle		●	●	●	●	●	●
	Fuel filler/urea port cap	ipsilateral + electric	●	●	●	●	●	●
	12V power supply	front row	●	●	●	●	●	●
	Wireless charging for mobile phones	50W charging power	-	●	●	-	●	●
	Type-C interface	Type-C（27W）back row	●	●	●	●	●	●
	USB interface	USB（10W+27W）front row	●	●	●	●	●	●
	USB interface	USB（27W）back row	-	●	●	-	●	●
	Pneumatic support for engine hood		●	●	●	●	●	●
	Four-door electric windows	One-click lifting + anti-pinch	●	●	●	●	●	●
	ambient lighting	Rhythm + Position: Right side of dashboard + Four doors	-	o	●	-	o	●
	footwell light	front row	●	●	●	●	●	●
security configuration	Driver/co-driver airbags		●	●	●	●	●	●
	Side airbag		●	●	●	●	●	●
	side curtain airbag		●	●	●	●	●	●
	cruise control		●	-	-	●	-	-
	Off-road cruise	crawl mode	●	●	●	●	●	●
	Turn around the tank		●	●	●	●	●	●
	Tire Pressure Monitoring		●	●	●	●	●	●
	side mirror	Electric adjustment + electric folding + defrosting + floor lamp	●	●	●	●	●	●
	side mirror	Rearview mirror reversing memory downfolding	-	-	●	-	-	●
	rearview mirror	manual anti-glare	●	-	-	●	-	-
	rearview mirror	electronic anti-glare	-	●	●	-	●	●
	Rear fog lights + rear reversing lights	double fog double inversion	●	●	●	●	●	●
	LED daytime running lights		●	●	●	●	●	●
	high-mounted brake light + rear trunk light		●	●	●	●	●	●
	front radar		●	●	●	●	●	●
	Parking sensor		●	●	●	●	●	●
	540 image	High-definition + transparent chassis + transparent engine hood	●	●	●	●	●	●
	ESC	ABS+ EBD	●	●	●	●	●	●
		HBA	●	●	●	●	●	●
		HHC	●	●	●	●	●	●
		VDC	●	●	●	●	●	●
		TCS	●	●	●	●	●	●
		RMI	●	●	●	●	●	●
		HAZ	●	●	●	●	●	●
		HDC	●	●	●	●	●	●
	ADASL2.0 Forward driving assistance	ACC	-	●	●	-	●	●
		AEB	-	●	●	-	●	●
		LKA	-	●	●	-	●	●
		TJA/ICA	-	●	●	-	●	●
		LDW	-	●	●	-	●	●
		IHBC	-	●	●	-	●	●
		ELK	-	●	●	-	●	●
		TSR/ISLI	-	●	●	-	●	●
	ADAS L2.0 Rearward driving assistance	BSD	-	-	●	-	-	●
		DOW	-	-	●	-	-	●
		LCA	-	-	●	-	-	●
		RCTA	-	-	●	-	-	●
		RCTB	-	-	●	-	-	●
		RCW	-	-	●	-	-	●
	ADAS L2.0+	JA	-	-	●	-	-	●
		HWA	-	-	●	-	-	●
		FCTB	-	-	●	-	-	●
		FCTA	-	-	●	-	-	●
		ESA	-	-	●	-	-	●
		ELK	-	-	●	-	-	●
		ALC	-	-	●	-	-	●
	Transfer case	central differential lock	●	●	●	●	●	●
	Differential lock (electronic control)	rear axle	-	●	●	-	●	●
	Differential lock (electronic control)	front axle	-	o	o	-	o	o
	Getting-in assist handle	One for the main driver and one for the co-driver (on A pillar) + one on each side of the rear seat	●	●	●	●	●	●
	Driver's seat belt	Three-point design + height adjustment + dual pre-tensioning + single force limitation	-	-	●	-	-	●
	Driver's seat belt	Three-point design + height adjustment + single pre-tensioning + single force limiting	●	●	-	●	●	-
	Passenger seat belt	Three-point design + height adjustment + dual pre-tensioning + single force limiting	-	-	●	-	-	●
	Passenger seat belt	Three-point design + height adjustment + single pre-tensioning + single force limiting	●	●	-	●	●	-
	Second row seat belt (three-point type)		●	●	●	●	●	●
	Engine front guard (metal)		●	●	●	●	●	●
	Lower engine guard (metal)		●	●	●	●	●	●
	Lower protective plate of gearbox (resin)		●	●	●	●	●	●
	ISOfix Child seat interface		●	●	●	●	●	●
	Child safety lock		●	●	●	●	●	●
Intelligent Interaction	Multimedia audio and video system	14.6 inches: Bluetooth + Voice Control + WIFI Module + OBD Display	●	●	●	●	●	●
	Internet of Vehicles	Remote start/remote control/Bluetooth key/active air purification	●	●	●	●	●	●
	Vehicle APP	Gaode Navigation + Aiquting + NetEase Cloud Music + Himalaya (car audiobook) + Tencent Video	●	●	●	●	●	●
	FOTA	Online software upgrade for complete vehicle	●	●	●	●	●	●
	speaker	2 high + 2 low + 2 full-range	●	●	-	●	●	-
	speaker	4 high + 4 low + 1 center + 1 subwoofer + 2 C pillars + external amplifier	-	o	●	-	o	●
Others	on-board tools		●	●	●	●	●	●
	front tow hook	2个	●	●	●	●	●	●
	rear tow hook	1个	●	●	●	●	●	●
	Rear traction device		-	o	o	-	o	o
	spare tire	Same main tire + steel wheel (non-AT tire)	●	●	●	●	●	●
	Internal rope hook	4 pcs	●	●	●	●	●	●
optional package	Utility bag	Roof rack + roll cage + rear cargo box electric step	-	o	o	-	o	o
	travel bag	Electric combination of flat box cover (including rear cargo box pedal) + rear traction device	-	o	o	-	o	o
	Luxury package	Steering wheel heating, panoramic sunroof (electric + electric sunshade), ambient lighting, 12 speakers + amplifier	-	o	-	-	o	-
	Off-road bag	AT tire, rear towing device (without rear tow hook), electric tailgate with boarding steps, front axle differential lock (electronically controlled) + all-terrain mode (rock), sand area kit, nitrogen shock absorption		o	o	-	o	o
Symbol explanation: ① "●" indicates standard configuration; "-" indicates no such equipment; "○" indicates optional equipment. ② ZZDFIE may make adjustments at any time and reserves the right of final interpretation
